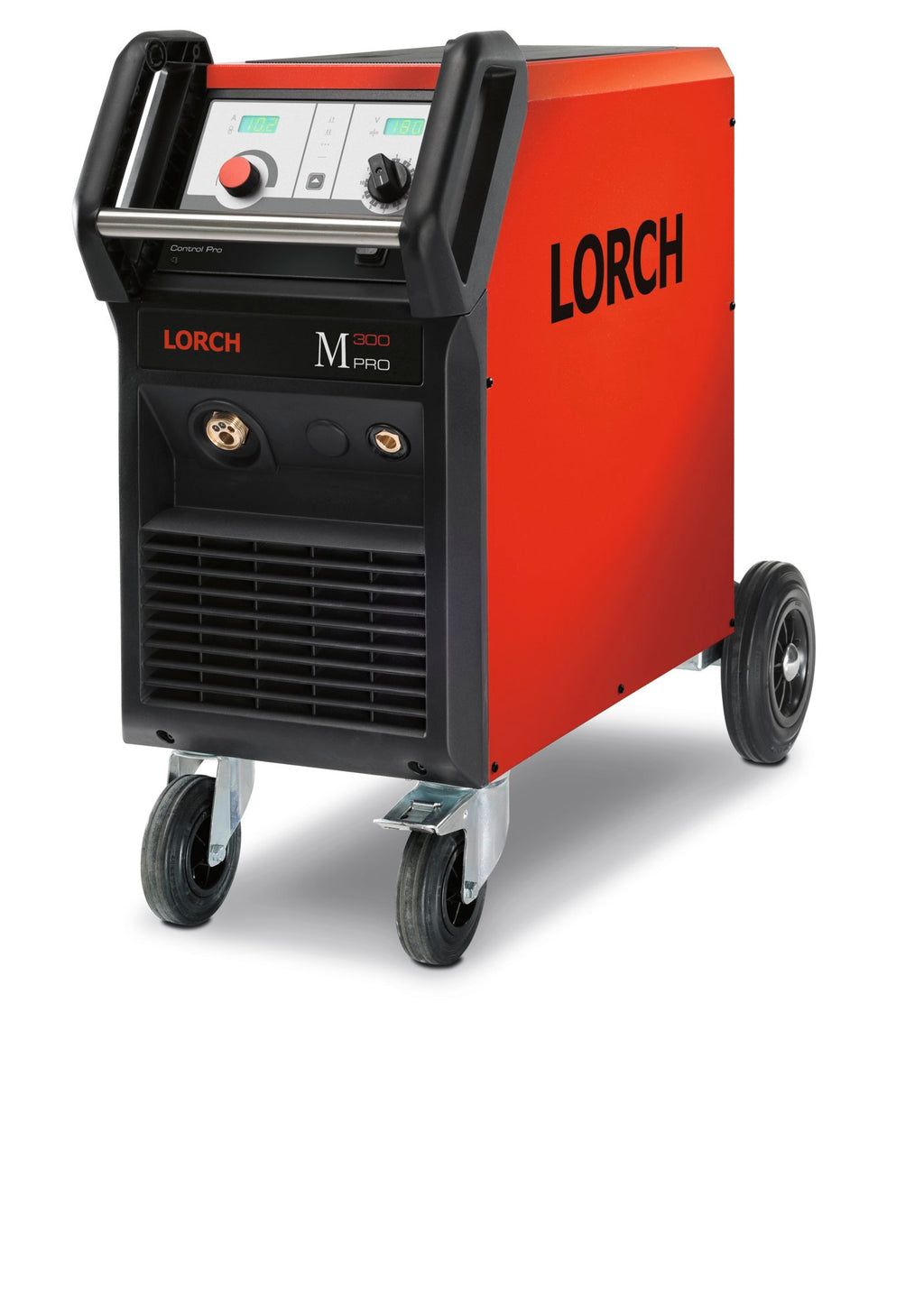

M-Pro 300 Performance Set 38/4 PM

LorchSKU: 218.0300.0

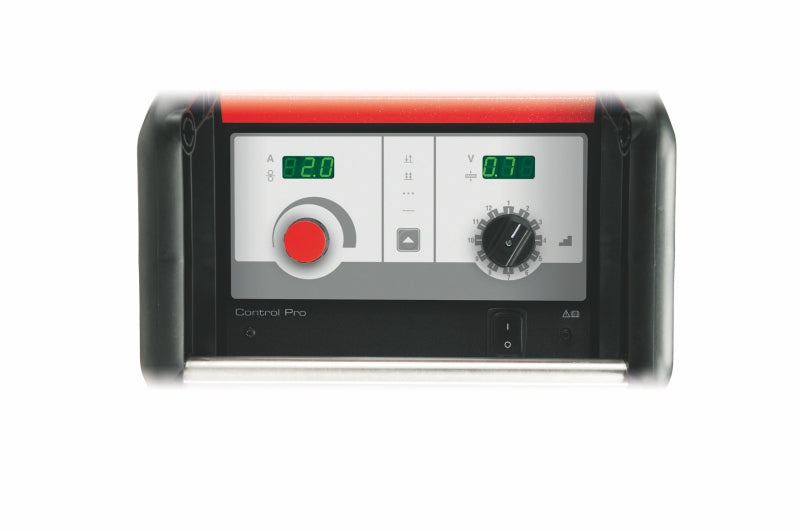

Display: BasicPlus
Utförande: Endast maskin
Pris:
Reapris31 951 kr

Frakt beräknas i kassan

Beskrivning

MIG-MAG welding
Welding range 3~ 400 V: [A] 30 - 300
Voltage range: [V] 15.5 - 29
Weldable Wires Steel: [Ø in mm] 0.6 - 1.2
Weldable wires Stainless steel: [Ø in mm] 0.8 - 1.2
Weldable wires aluminum: [Ø in mm] 1 - 1.2
Voltage setting
Voltage setting: 12/21 passi
MIG-MAG duty cycle
Duty cycle 100% (40°c): [A] 170
Duty cycle 60% (40°c): [A] 205
Duty cycle at max. current (40°c): [%] 25
Process-independent data
Open circuit voltage: [V] 15 - 53
Mains 400 V
Mains voltage 3~ (50/60 Hz): [V] 400
Mains fuse 3~ (50/60 Hz): [A] 16
Positive mains tolerance 3~ (50/60 Hz): [%] 15
Negative mains tolerance 3~ (50/60 Hz): [%] 15
Mains plug
Mains plug: CEE 16
Standards and approvals
Protection class: IP23S
Insulation class: F
Norm/Standard: EN 60974-01
Designation/Certification: CE, S
Cooling type
Cooling type: Gas-cooled
Dimensions length x width x height
Dimensions (LxWxH) [mm] 880 × 400 × 755
Weights
Weight: [kg] 80
