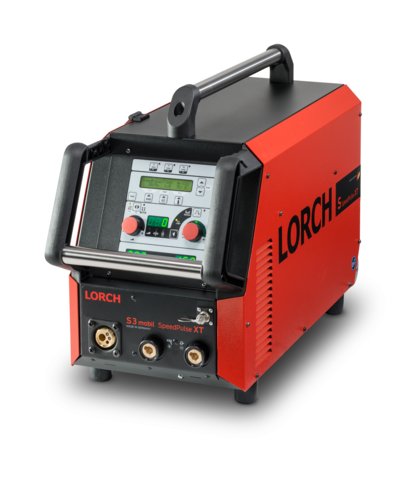

S3 mobile SpeedPulse XT-FP - gas-cooled mobile system (Full Process)

LorchSKU: 220.3207.1

Kylning: Luft
Utförande: Kompakt, endast maskin, alla processer installerade
Pris:
Reapris97 620 kr

Frakt beräknas i kassan

Beskrivning

MIG-MAG welding
Welding range 3~ 400 V: [A] 25 - 320
Weldable Wires Steel: [Ø in mm] 0.6 - 1.2
Weldable wires aluminum: [Ø in mm] 1 - 1.2
Weldable wires CuSi: [Ø in mm] 0.8 - 1.2
Voltage setting
Voltage setting: Continuo
MIG-MAG duty cycle
Duty cycle 100% (40°c): [A] 250
Duty cycle 60% (40°c): [A] 280
Duty cycle at max. current (40°c): [%] 40
Electrode welding
Weldable electrodes: [Ø in mm] 1 - 6
Process-independent data
Open circuit voltage: [V] 78 - 109
Feed speed standard: [m/min] 0.1 - 25
Mains 400 V
Mains voltage 3~ (50/60 Hz): [V] 400
Mains fuse 3~ (50/60 Hz): [A] 16
Positive mains tolerance 3~ (50/60 Hz): [%] 15
Negative mains tolerance 3~ (50/60 Hz): [%] 15
Mains plug
Mains plug: CEE 16
Standards and approvals
Protection class: IP23S
Insulation class: F
Norm/Standard: EN 60974-01
Designation/Certification: CE, S
Cooling type
Cooling type: Gas-cooled
Dimensions length x width x height
Dimensions (LxWxH) [mm] 812 × 340 × 518
Weights
Weight: [kg] 34
